The Leica BLK247 is a hybrid surveillance camera that combines LiDAR, video, and thermal imaging into one all-in-one device. It features edge computing with integrated AI capabilities for fast on-site processing and real-time intelligent analysis. Additionally, it supports seamless integration with security and corporate systems, making it a key component for smart factory monitoring solutions
Smart 3D Surveillance System for Accurate Monitoring
AI Smart Threat Detection for Real-Time Security
The BLK247 is an accurate and reliable smart 3D surveillance system that instantly distinguishes between threats and safe objects, reducing false alarms and enhancing the overall reliability of your security system.
Advanced Sensor Fusion Technology for Accurate Detection
The BLK247’s sensor fusion technology combines LiDAR, video, and thermal imaging sensors to enable real-time 3D displacement detection and spatial monitoring.
Integrated 3D Surveillance Technology for Wide-Area Monitoring
The BLK247 solves real-world 3D surveillance challenges that traditional 2D security cameras cannot address.
Full-Space Monitoring with 3D Geofencing and Wide-Angle Sensing
The BLK247 is a multi-sensor device with a 360° horizontal and 270° vertical field of view. It enables full spatial monitoring and allows you to define specific zones for surveillance using 3D geofencing.
BLK247 Wins Best New Product of 2020 at ISC West Security Awards
The BLK247 was awarded the “Best New Product of 2020” by the Security Industry Association, in partnership with ISC West.
AI-Driven Sensor Fusion with LiDAR, Video & Thermal
The BLK247 uses sensor fusion, edge computing, and AI to integrate LiDAR, video, and thermal imaging technologies.
LiDAR
The LiDAR sensor detects motion and scene changes based on precise laser measurements and determines whether the movement is a potential threat (e.g., a person) or non-threatening (e.g., animals, debris, or moving trees).
Thermal
The thermal camera monitors the scene for temperature changes associated with people entering the environment.
Video Cameras
Two RGB cameras monitor the scene and can capture photos and video when an event occurs.
LiDAR
An array of invisible laser beams covering a 360° × 270° field continuously scans the space with high-dimensional precision, enabling real-time detection of 3D displacement.
Video
The twin video camera system monitors the same area as the LiDAR system and records onboard video sequences.
Thermal
Four thermal cameras monitor temperature changes throughout the space.
AI & Edge Computing
Covering a 360° × 270° field of view, the BLK247 uses onboard AI and edge computing to analyze collected data. It distinguishes between threats and safe objects, determining whether to trigger an alarm.
Sensor Fusion
The BLK247 combines the capabilities of LiDAR, video, thermal imaging, and AI to generate alerts and alarms. LiDAR detects intrusions and verifies human presence using other sensors.
BLK247 Camera Specifications for 3D and Thermal Surveillance
The BLK247 x5 is equipped with four thermal cameras that monitor on-site temperatures, making it suitable for both indoor and outdoor environments.
The BLK247 i5 is ideal for indoor environments that do not require dust and water resistance or thermal imaging.
| Housing: Black powder-coated aluminum Height: 189 mm Weight: 1,460 g Diameter: Base: 140 mm Lighthouse: 80 mm |
Housing: White powder-coated aluminum Height: 189 mm Weight: 1,380 g Diameter: Base: 140 mm Lighthouse: 80 mm |
|||||
| Power Supply Power consumption: 51 W (max) Power supply options: ・ Power over Ethernet (PoE++); IEEE 802.3bt, Type 3, Class 6 ・ Power supply over I/O port 48 V DC 1.06 A Alarm Output I/O Connector Solid-state relay Max. operating voltage: 40 V DC/AC Max. switching current: ・ 5 V: max. 200 mA ・ 12 V: max. 100 mA ・ 24 V: max. 50 mA |
||||||
| Imaging sensor: 2-camera system, RGB Type: Fisheye lens Single camera resolution: 12 megapixels Field of view: 360° x 180° (stitched image) Stream resolution: 1080p / 720p Frame rate: 10/15/20/25/30 fps H264 profile: HIGH / MAIN / BASELINE Image adjustment: Auto Privacy masking: Black/white |
||||||
| Laser class: Class 1 laser (compliant with IEC 60825-1) Wavelength: 830 nm | ||||||
| IP Rating: IP55/65/67 Operating Temperature: -15° C to 40° C Storage Temperature: -25° C to 70° C Humidity: Max 95% non-condensing Operating Altitude: No limit |
IP Rating: None Operating Temperature: 10° C to 35° C Storage Temperature: -25° C to 70° C Humidity: Max 95% non-condensing Operating Altitude: No limit |
|||||
(THERMAL CAMERA) |
Imaging Sensor: 4-camera system Emissivity: Adjustable Single Camera Resolution: 80 x 64 pixels Field of View: 360° x 136° (stitched panoramic image) 88° x 70° (single panoramic image) Measurable Temperature Range: -20°C to 1,000°C Stream Resolution: 720 x 480 Frame Rate: 2 fps |
No function | ||||
| ・ Recommended Internet Browser: Google Chrome™ ・ General Device Settings ・ Device Status ・ Restricted Area Definition ・ Scheduling & Activation of Restricted Area Functions ・ Event List and Event Attachment Downloads |
||||||

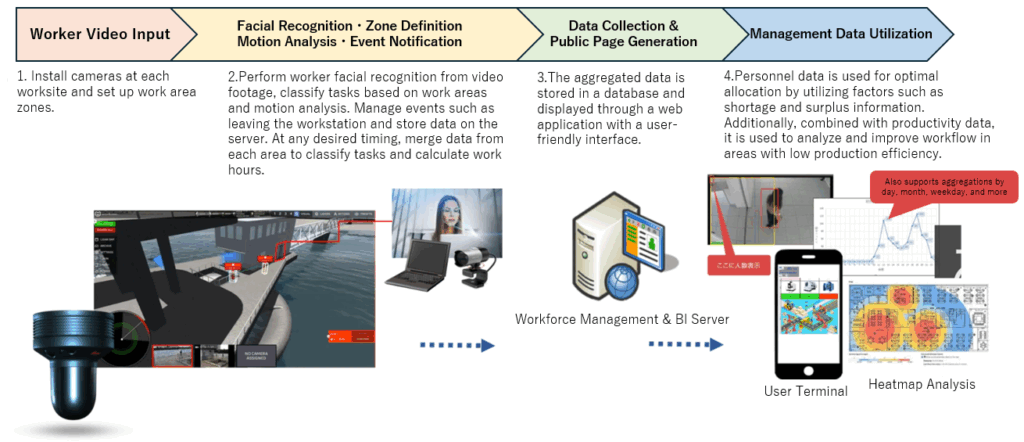

Workload Management App for Visualizing On-Site Worker Efficiency
【Background】
While efficiency improvements in upstream processes like design and higher precision in production equipment are expected to reduce worker hours, productivity gains sometimes fall short of expectations. There is a need for a system that tracks worker movements on-site and visualizes actual workload management.
How BLK247 Enhances Security by Detecting Movement in Complete Darkness
Traditional 2D Surveillance
→ Unable to track intruders once they have passed through the security gate
3D Surveillance Using BLK247
→ Enables tracking after passing through the security gate

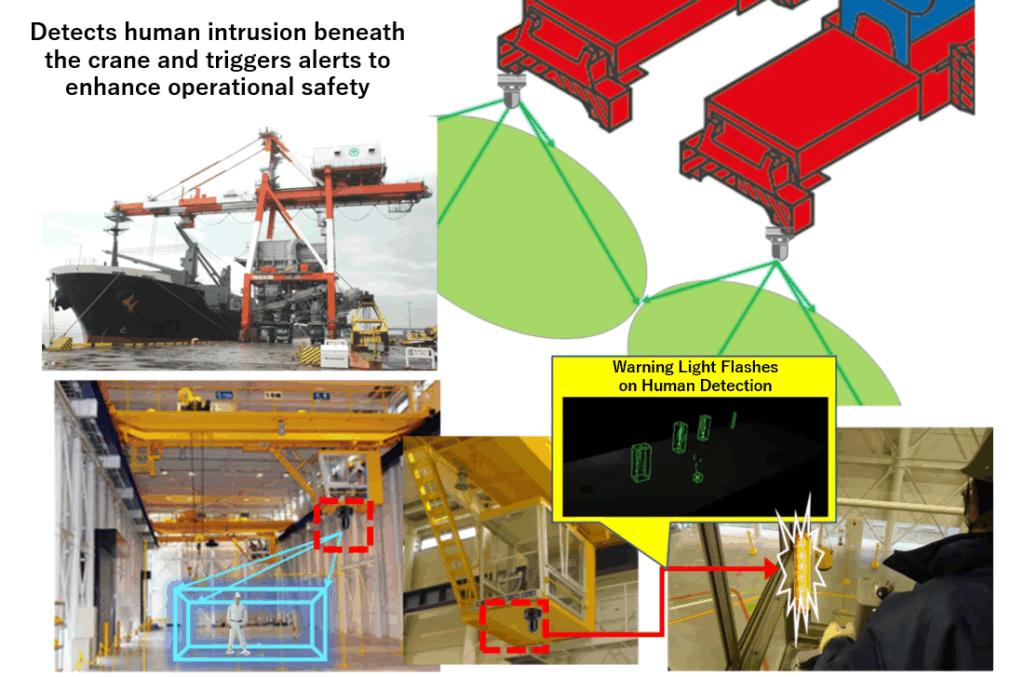

Improving Overhead Crane Safety with Smart Monitoring Technology
【Background】
When transporting large loads with overhead cranes, the size of the load can create blind spots for the crane operator, potentially leading to accidents. There is a need to detect fast-moving objects, such as people, to enhance the safety of crane operations.
Seamless Security System Integration with VMS and PSIM Platforms
The BLK247 can be integrated with existing Video Management Software (VMS) and Physical Security Information Management (PSIM) systems.
